Radio Transmission Free Entry Call-For-Fire

At any time the observer can use the plain text Radio Transmission Free Entry box to enter radio transmissions and transmit them. To do this, open the Radio Transmission Plain Text Entry window which can be activated from the main menuRadio->Radio Transmission Free Entry.

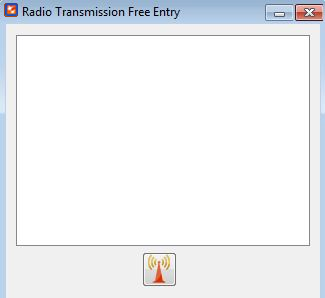

∆ Image 13e.1: Radio Transmission Free Entry Window

Using this window, the observer can enter the text of any radio transmission complete with callsign and message terminator. For example to start a new fire mission, the following could be typed:

Adjust Fire

20 THIS IS R2 AF OVER

20 THIS IS R2 GRID 60007000 OVER

20 THIS IS R2 2 G HE Q IN ADJ C RAD 100 OVER

Fire For Effect

20 THIS IS R2 FFE OVER

20 THIS IS R2 GRID 60007000 OVER

20 THIS IS R2 BTY HE Q 3 RNDS IN EFFECT C RAD 100 OVER
