Grid Referencing System

The grid referencing system used in VBS2Fires can be changed from here. The default settings for grid referencing will be Abbreviated MGRS. It could be changed upon user preference into MGRS or UTM.

The format in which a grid location can be entered with MGRS and UTM referencing is shown below,

Abbreviated MGRS: 02998242
MGRS: 24svj1089787204
UTM: 24n 410897mE 4387204mN

∆ Image VBS2Fires_11: Fires Meteorological Status Window

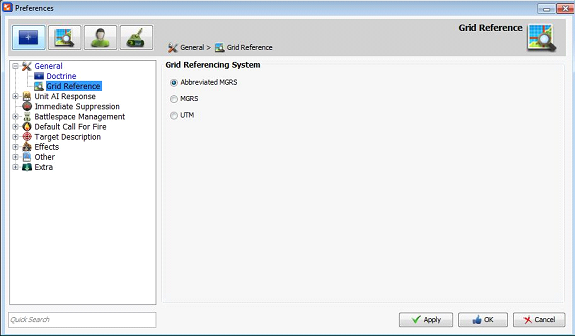

∆ Image 11e.3: Grid Referencing System

The easiest way to obtain MGRS & UTM coordinates for a target is through VBS2 Real Time Editor (RTE). A user can select and right click any object such a unit or marker and select the ‘GPS Positioning’ option. This will open up ‘GPS Coordinate Settings’ window. The current section will displays the MGRS & UTM coordinates of that object.

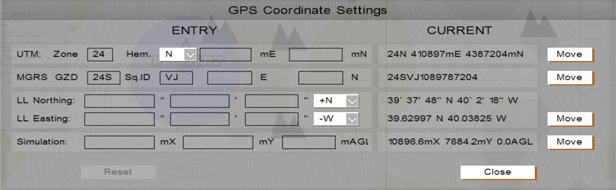

∆ Image 11e.4: GPS Coordinate Settings
