Real Time edit
During a scheduled fire mission, it is possible to adjust the values for a fire serial. After activating, it is allowed to right click > Edit Serial and make changes to:
- Target
- Distribution
- Effects
- End Time
- Trajectory
- Fire Rate

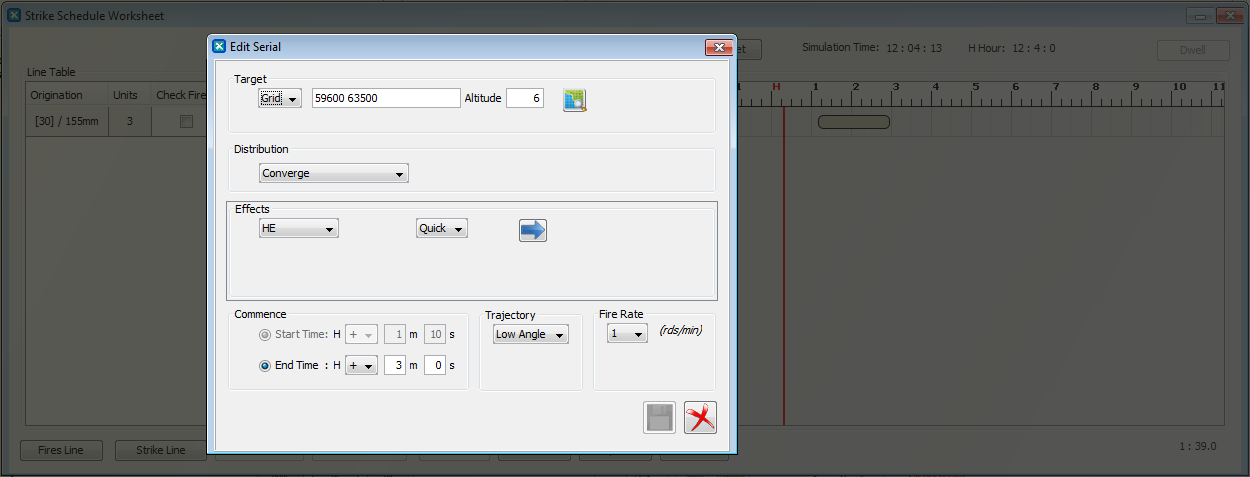

∆ Image 4b.15: Strike Schedule Worksheet - Real Time edit of fire serial |
The Save button is disabled by default. After editing the fire serial, the Save button is enabled. Then the user may click the Save button, and then the Save button changes to a revolving circle which indicates that VBS3Strike is applying the changes maden changes to a revolving circle which indicates that VBS3Strike is applying the changes made.
∆ Image 4b.16: Strike Schedule Worksheet-Edit fire serial applying changes |
After a serial has been edited in real time, the original serial is split into two serials; a new serial will be created with the new values in effect. This is to clearly identify previously fired serials before the edit has taken place and show the new serials with the new values after an edit that are to be fired.
The serial would split according to the number of rounds calculated for the original serial. This means that if a serial has been edited without changing the rate of fire, the original serial and the new split serial’s number of rounds would accumulate to the original number of rounds. The new split serial would be created accordingly to the nearest minute at the point of applying the edit.
∆ Image 4b.17: Serial before real time edit |
∆ Image 4b.18: Serial after real time edit |
NOTE:
Completed serials during a live mission cannot be edited until the whole mission is completed.
