VBS2 Transmissions Panel
The VBS2 Transmission Panel will display all messages to the Instructor which
are automatically generated by the aircraft.
The following messages are
displayed in both the VBS2 Side and Transmission Panel.
- "IP INBOUND"
- "IN", WINGS LEVEL,
- "CLEARED HOT"
The following messages will be display in the Transmission Panel and the same time the messages will be displayed in the task table in Instructor Control Panel
- "MOVING"
- "EGRESSING"
- "ESTABLISHED BP"
- "OBTAINING LOS"
- "PUSHING TO IP"
- "PUSHING TO BP"
Note:
These messages will not display in VBS2
Side

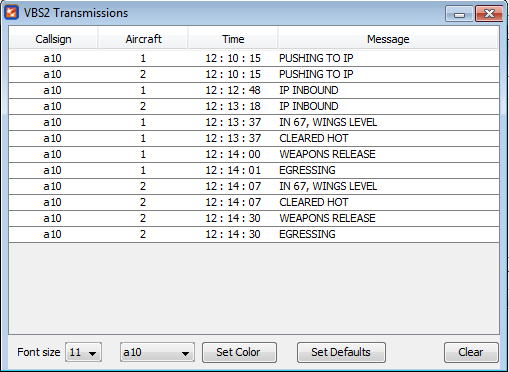

∆ Image 17l: vbs2 Transmissions panel |
| Name | Description |
|
Callsign |
Displays the Aircraft name |
|
Aircraft |
Shows the platform number |
|
Time |
This will display the initial time of the aircraft status. |
|
Message |
This will display the current status of the aircraft. |
|
Font size |
This will Pre-set the current Font size. The available Font sizes are "10, 11, 12, 14, 16" (11 is the default font size) the selected Font size will be applied to the whole table |
|
Set Color Button |
Color can be configured based on the asset |
|
Set Defaults Button |
This will reset to default font size and the color |
|
Clear Button |
This will clear all the transmissions displayed in the transmission panel |
