Target Worksheet (Observer)

This worksheet is available in both trainee and standalone mode. This worksheet is for planning purposes only and functions exactly the same way as the asset target list worksheet. The difference, user must export the data and then import to the Target Worksheet (Assets) for use in shift missions. The user has the ability to delete and rename previously recorded targets. To view this window, from the main menu system: Records->Target Work Sheet (Observer)

When the ‘Recorded as target’ option is selected from the ‘Adjustment’ window, the target details will appear on this work sheet. In a network scenario, the observer target worksheet needs to be loaded up by the VBS2Combined Arms Trainee terminal and the same worksheet must be imported into the Asset Target worksheet in the VBS2Combined Arms Instructor mode. Only then those targets can be used in shift missions.

See Target Worksheet (Asset) for more information.

Features of this worksheet are:

Show data about Target, Description, Location, Altitude, Attitude, Length, width, Source/Accuracy and Remarks of the targets
Remarks – the distribution details of a target, if the target has been recorded through a mission
Allow user to enter data to the worksheet
Load compatible data from Microsoft Excel 2003 and 2007 worksheets
Save data back into VBS2
Load data from VBS2 and show them in the worksheet
Print the worksheet data
By clicking a column of the worksheet the data in the worksheet can be sorted according to the data of the clicked column.
To rename a target record, click the ‘Target’ column of that target entry, rename the target and then click the ‘Save’ button.
The check box column, allows targets to be selected and deleted by clicking the "Delete Selected" button.

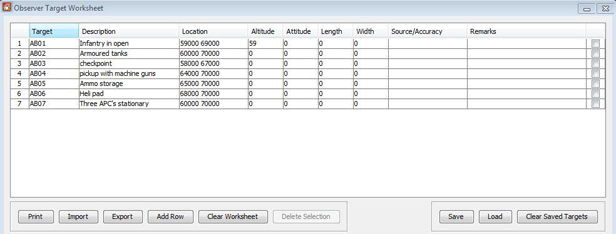

∆ Image 17b: Target Worksheet (Observer) window

Note:
Files cannot be exported and saved in Local Disk C of the user’s computer.

The Observer Target Worksheet also checks for erroneous entries and makes sure the user enters targets that are error free target records. All validation checks take place when the user clicks on ‘Save’.

If errors exist when the user clicks on ‘Save’, the following error message would be displayed.

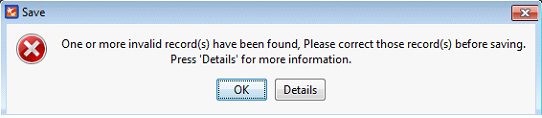

∆ Image 17b1: Error message indicating wrong target records

Clicking on ‘Details’ would display a summary of all errors that have occurred in the Observer Target Worksheet.

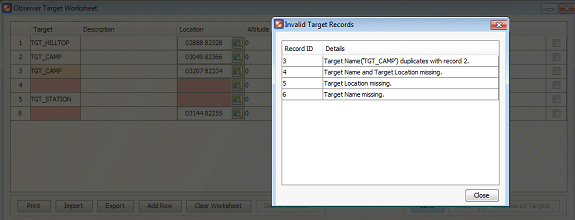

∆ Image 17b2: List of errors occurred when saving target worksheet

The Observer Target worksheet displays the errors in the following ways:

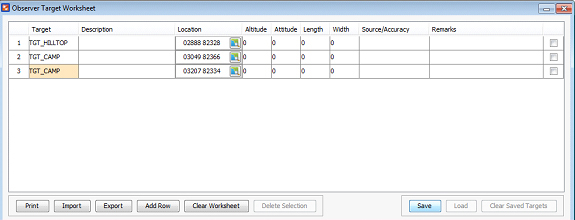

If more than one target record consists of the same target name, the Observer Target Worksheet would display this error in the following manner:

∆ Image 17b3: Observer target worksheet

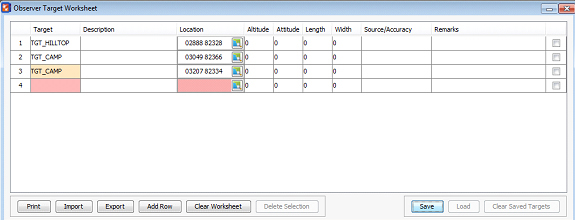

Having found missing values in the target worksheet, the following image shows how it would be indicated:

∆ Image 17b4: Observer target worksheet
