Geographic View

This graphically displays the selected fire mission via the Serial Table. Green line represents the observer target line. Red line represents the Gun Target Line. Max Ord and time of flight are also displayed in this window. The distribution of the selected serial will be shown in the Geographic View window. The Geographic View window contains layers which will expose the details of the map. The amount of layers or the map detail needed for the mission can be selected from Preferences -> Map Preferences. The selection of the layers should be done before the start of the mission.

∆ Image VBS2Fires_54: FIRES Fall of Shot tab of ICP window

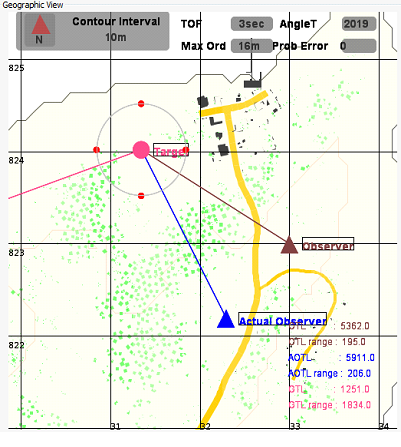

∆ Image 8p: Geographic View window
