Fire Mission Data

To start a fire mission from the Instructor Control Panel one or more trainees should be connected to the Instructor. The Instructor can select the Firing Unit, Observer, and the Mission Type from the drop down lists labelled respectively as Firing Unit, Observer and Msn Type.

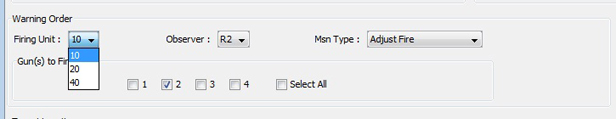

∆ Image 7b: Firing unit/ observer/ mission type

The guns to be allocated in the fire mission can be selected by ticking the checkbox for the respective gun, or else all the guns can be allocated by selecting the ’Select All’ option.

The users can enter the target location, altitude, and direction as preferred for the fire mission type which could be a GRID, SHIFT, or a POLAR mission.

∆ Image 7c: Target Location

∆ Image 7d: Target Location

∆ Image 7e: Target Location

The users can then select the target descriptions, shell/fuse combinations, distribution of the shot, and finally the method of fire.  The users can select different combinations of ammunition for the fire mission with the help of the with button. The with button will be enabled only if the users select 2 or more guns for the fire mission.

∆ Image 7f: Fire Mission Details

If a user need to enter more details for the CFF mission such as the target size, method of adjustment, it can be achieved by clicking on the ‘Advanced’ button.

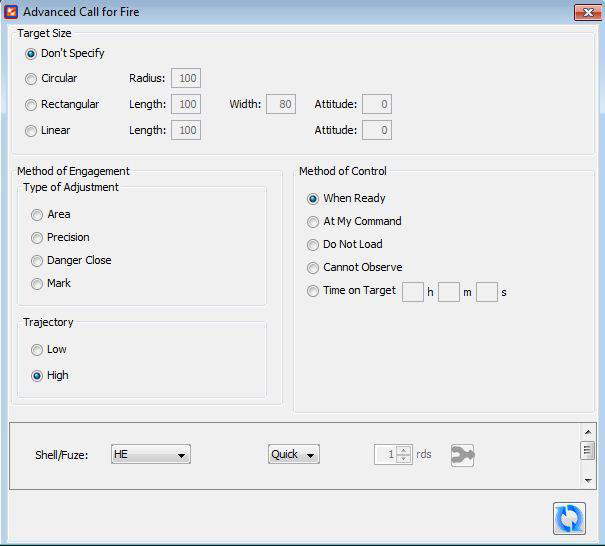

∆ Image 7g: Advanced call for fire

After selecting the relevant advanced descriptions and clicking the ‘Update’ button will update the CFF mission details in the Instructor Control Panel main window. If ammunition values are already selected from Instructor Control Panel main window and no ammunition values have been selected from the ‘Advanced Call for Fire’ window, VBS2Combined Arms will use the initial values entered in Instructor Control Panel.

After all the details relevant to conduct the fire mission are entered, the users can click on ‘Calc Msn Data’ button to view the gun details. This will show the details of the mission which will be conducted such as the deflection, quadrant, shell, fuse, and fuse setting.

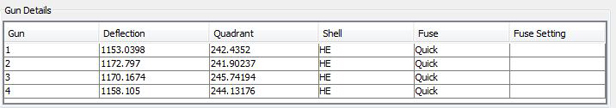

∆ Image 7h: Fire Mission Data tab

The user can press the fire button to conduct the fire mission, where the guns will be laid and the shots will be released to the target location.

∆ Image 7i: Button Panel

Whenever a mission is conducted via the Instructor Control Panel there will be no radio messages shown in the Radio Log other than for Error Messages. If the instructor requires to send messages to the trainees connected to VBS2Combined Arms press ‘Send MTO’ button and enter the necessary message and click ‘Ok’. This will send a message to the selected observer giving the details of the fire mission.

∆ Image 7j: MTO message to observer window

∆ Image 7k: MTO message trainee view window

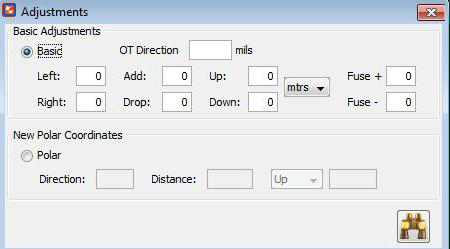

∆ Image 7l: Serial table

If an Instructor wants to process an adjustment, to an active fire task, select the battery entry of that fire task and then click the ‘Adjust’ button. Then an ‘Adjustments’ window will be opened. Perform the adjustments, and click ‘Adjust’ button. Then click ‘Add’ button to confirm the changes to the battery entry. Polar adjustments can be achieved by adjusting the direction and distance values of that had just been fired. Then the range (Distance) and direction are sent to the battery. The user has to select the required serial which needs to be adjusted from the serial table and then do the adjustments.

The check fire button will stop all firing during multiple round missions.  Button will change to Cancel check fire, click to continue firing.
