Creating Scenarios with the use of VBS2Layers

It is fairly easy to create VBS2 Scenarios using the VBS2 Layers Feature. To do this there should be an already created complete scenario which you could export to another mission or terrain.

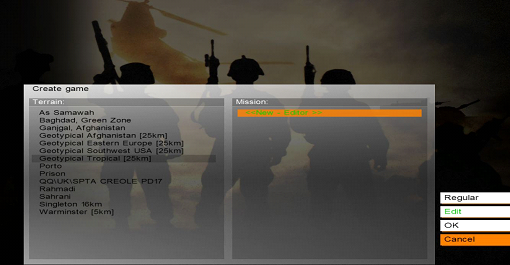

Step 1 :Proceed to a terrain of your choice select on New Editor and then click on OK.

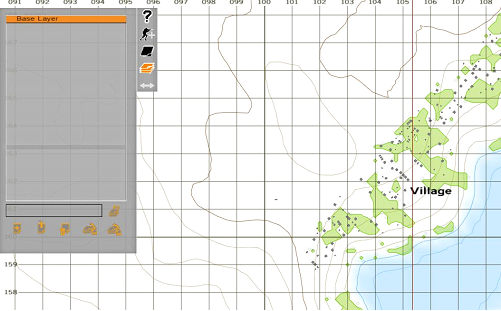

Step 2: Once you proceed to the 2D terrain, click on the expand button on the left extreme. Then a tray will appear as shown in the below image. Select   layers in that tray.

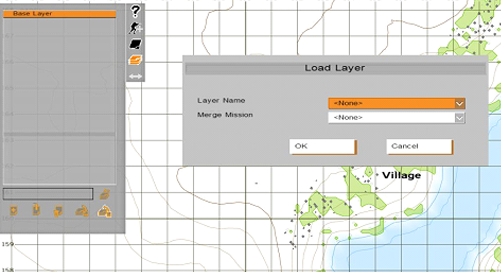

Step 3: Click on the load layer  button on the lower right corner of the tray. A dialog box will appear from VBS2 to help the users load any layers or merge any missions.

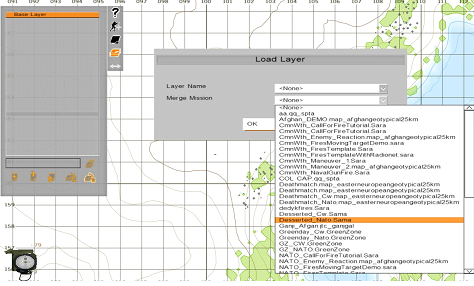

Step 4: From the Merge Mission drop down list the users can select the preferred mission layer.

Step 5:  Once the respective mission layer is loaded its contents can be seen on the current terrain as a different layer.

Step 6: Since the cordinate systems can be changed if a layer from a different terrain is loaded, the user needs to adjust the locations of the objects accordingly to support the current scenario.

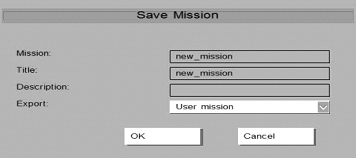

Step 7: Save the Scenario.
