Battery Specific Data
The following files allow ballistic data which can be individually defined for each battery within a VBS2 scenario. VBS2Combined Arms is designed so that custom values can be easily used or where default values can be used instead.
When defining a ‘VBS2Combined Arms Gunline’ object (a new battery in VBS2), there is a place to enter details for these three files. This allows a custom file name (which can be anything) to be entered for each gun line
Note:
You do not have to define all three files here. You could define one, two, three or none.

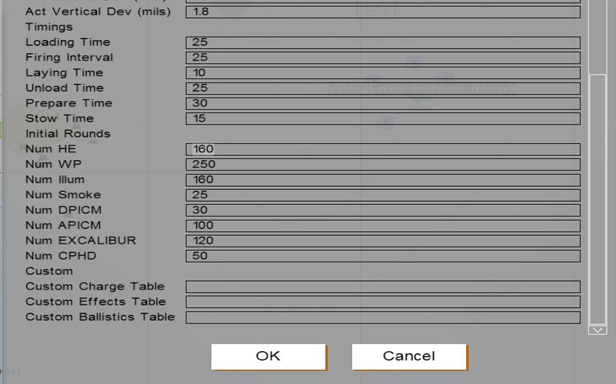

∆ Image 25a: VBS2 Configuring the gun lines |
If a value is entered in here, VBS2Combined Arms will first look for that file in the mission directory when the VBS2 scenario starts. If it finds the file, it will use that. If not it will look for that named file in the myData directory. If it cannot find that, it will use the calibre of the battery to try and find a matching calibre entry. Again it will first try the mission directory and if not successful it will try the myData directory.
When doing the above search it will look for a file with a filename in the format of:
- chargeX.dat - where X is the calibre of the gun. For example charge155.dat.
This would be for the charge table.
For the other file types it will look for:
- ballisticsX.dat and damageX.dat
If it is unable to find the relevant filename, it will then look for a file with the name chargeDefault.dat (or ballisticsDefault.dat or damageDefault.dat) in the myData directory.
If it is still unable to find that file, it will use the system default for the selected calibre and if the calibre is not recognized as a standard calibre, then it will use the system general default data for the relevant category.
A list of the load sequence is shown below for the damage file of 155mm battery:
- Attempt to load specific battery specified file name from Mission directory
[UserDir]\Documents\VBS2\[Mission Directory]\<useDefinedFileNameInGunlineObject> - Attempt to load specific battery specified file name from myData directory
[InstallDir]\myData\<useDefinedFileNameInGunlineObject> - Attempt to load calibre related file name from Mission directory
[UserDir]\Documents\VBS2\[Mission Directory]\damage155.dat - Attempt to load calibre related file name from myData directory
[InstallDir]\myData\ damage155.dat - Attempt to load general file from myData directory
[InstallDir]\myData\ damageDefault.dat - Attempt to load calibre related data from system defaults
- Use general default data.
