Aircraft Check-In

This feature is used to Check-In aerial assets to a mission by calculating TTT, Distance to Target, Target Direction. Aircraft Check-In will not be done if the aerial asset is already engaged in a mission. This also controls the Ammunition levels with the ‘Refill Ammo’ feature and displays the Current ammunition, consumption ammunition levels of each Aerial Asset.

? Image 12d: Strike Flight Deconfliction window

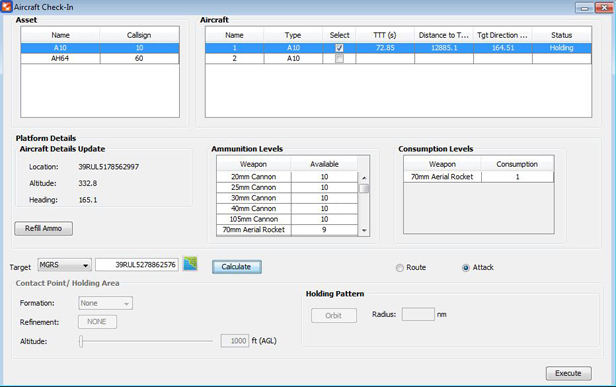

∆ Image 2a: Aircraft Check-In

Column Name	Description
Asset	All Aerial Assets in Scenario
Aircraft	Details on all air platforms
Target	Assign Target to selected Aerial asset
Calculate Button	The direction in correlation to the gun
Execute Button	Performs the actions based on ‘Route’ and ‘Attack’.
Refill Ammo Button	Refills ammunitions to its default levels
Aircraft Details Update	The Location, Altitude, Heading of the aircraft updated every five seconds
Ammunition Levels	Displays the Weapon and its Current Level
Consumption Levels	Displays the total weapon consumption level
Route	The selected aircraft will be routing in the given routing altitude
Attack	Once a grid point is selected through ‘From Map’, while selecting the Attack option and click on “Execute” Button the selected grid will be generated into the VBS2Combined Arms application.
Reference Grid	The grid location for the holding pattern is specified here. The following reference grid types are available: MGRS ABBR, MGRS, UTM and REF PT.
From Map button	When this button is clicked, VBS2 will switch to RTE mode.
Formation	Choose from the available formations [trail] for the aerial asset to fly to the holding location
Refinement	This is the adjustment to the starting grid. The refinement types: None [Asset goes through the grid location], Key Hole [with respect to the start grid location, then the user can select from: Alpha, Beta, Charlie and Delta and enter a refinement distance] and Polar [with respect to the grid location the user can specify 0-360 degrees and the distance to the location].
Holding Pattern	The Holding pattern types are: Orbit [The holding pattern shape is circle and the user can specify a radius for this circle. For Rotary Wing aerial assets, the radius requires to be between 1000m and 10000m while for Fixed wing the radius required to be less than 5nm.] Linear [The holding pattern is in the shape of race track (ellipse). The Bearing (angle) needs to be specified between 0-360 degrees to create the linear holding pattern. The distance value is the distance between the two corner points of the holding pattern where for Rotary wing it should be between 1000m to 10000m and for Fixed wing it should be below 5nm.] Figure 8 [The holding pattern is in the shape of the number 8]
Altitude	The maximum attack altitude for fixed wing is 40000ft and the minimum is 300ft. The maximum attack altitude for rotary wing is 2000m AGL. and the minimum is 100m AGL

Note:
In both Aircraft Check-In panel and Routing to contact point/Holding Area panels, if a large refinement value is given for Key Hole or Polar refinement types, an error message will be displayed as shown below.

∆ Image 2b: Refinement out of range message
